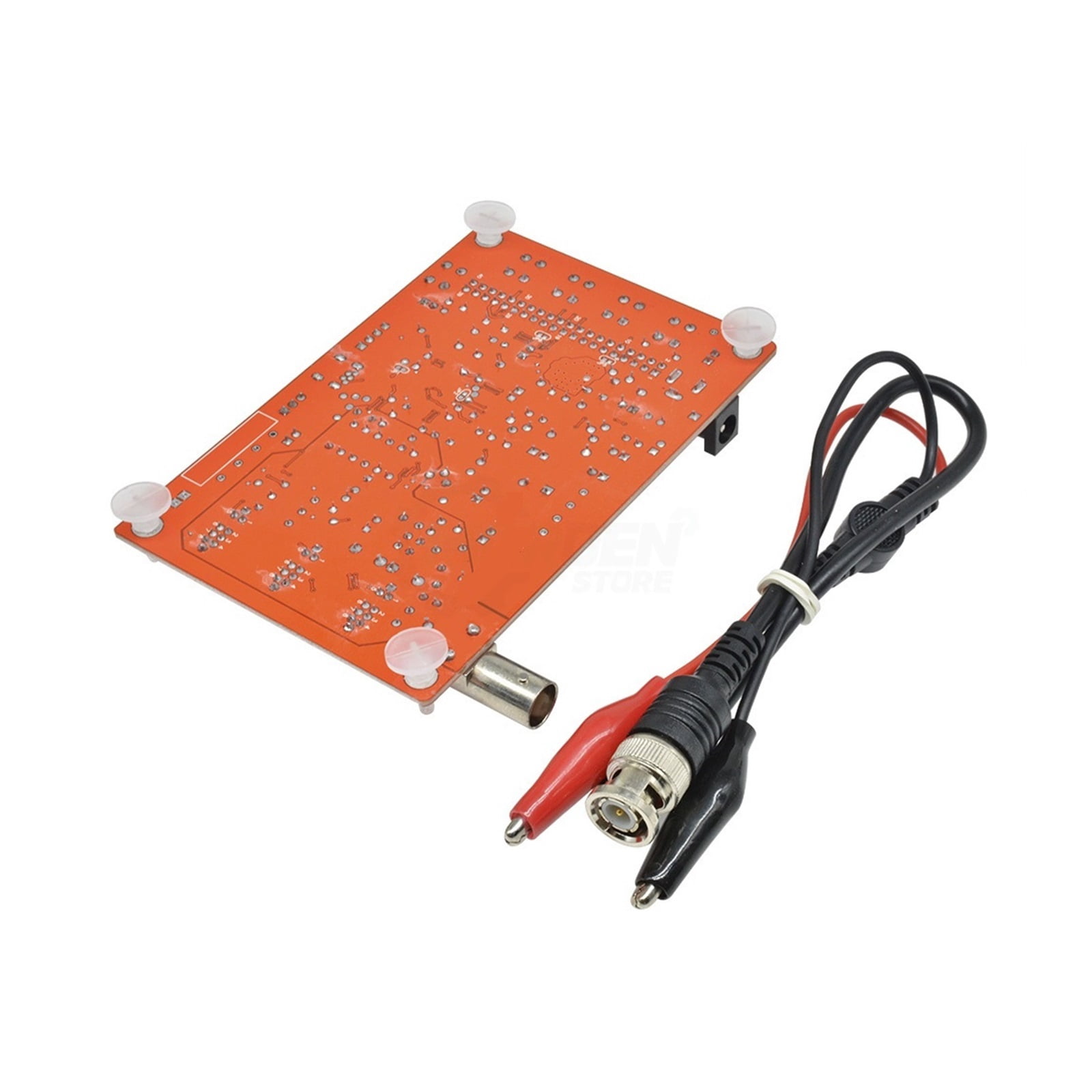

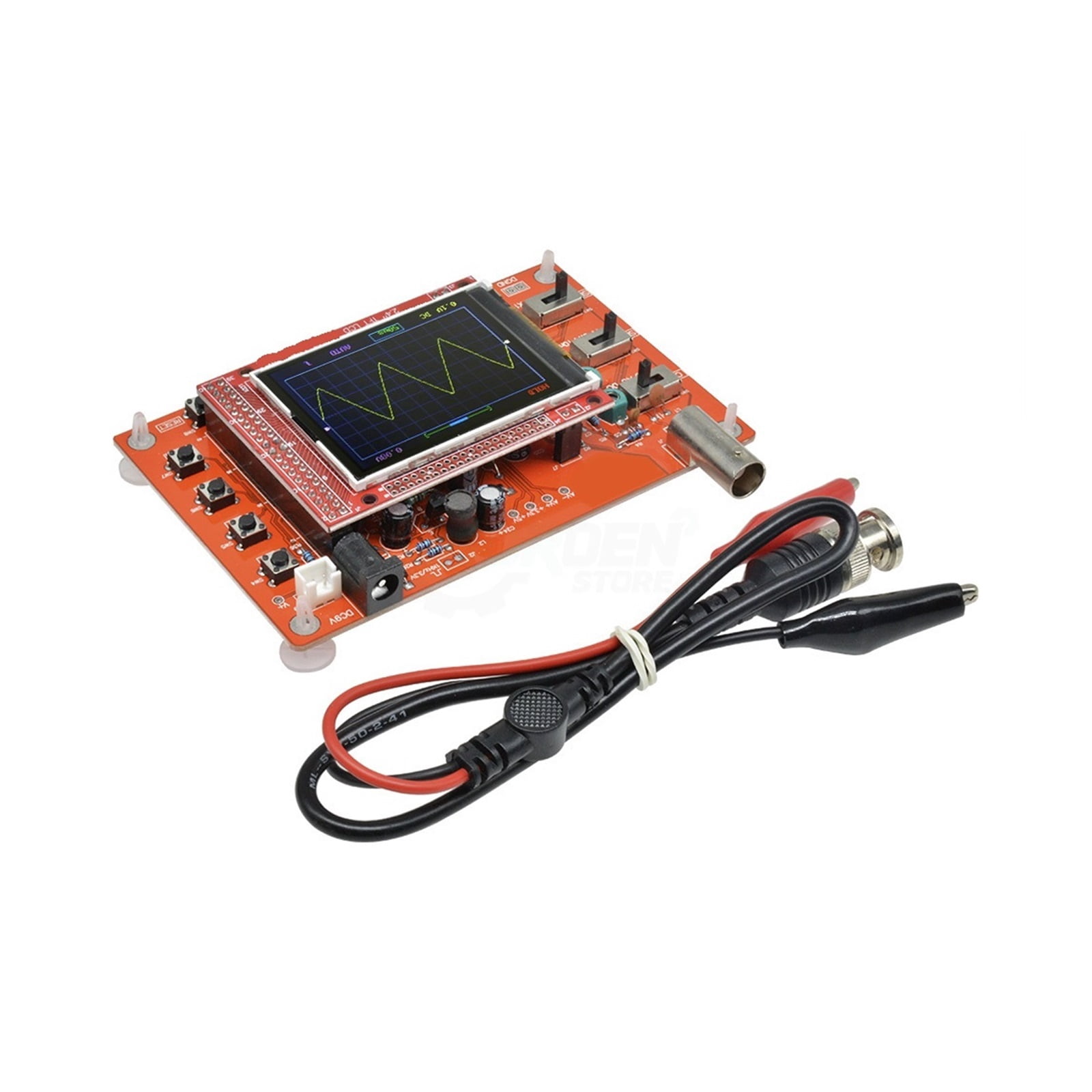

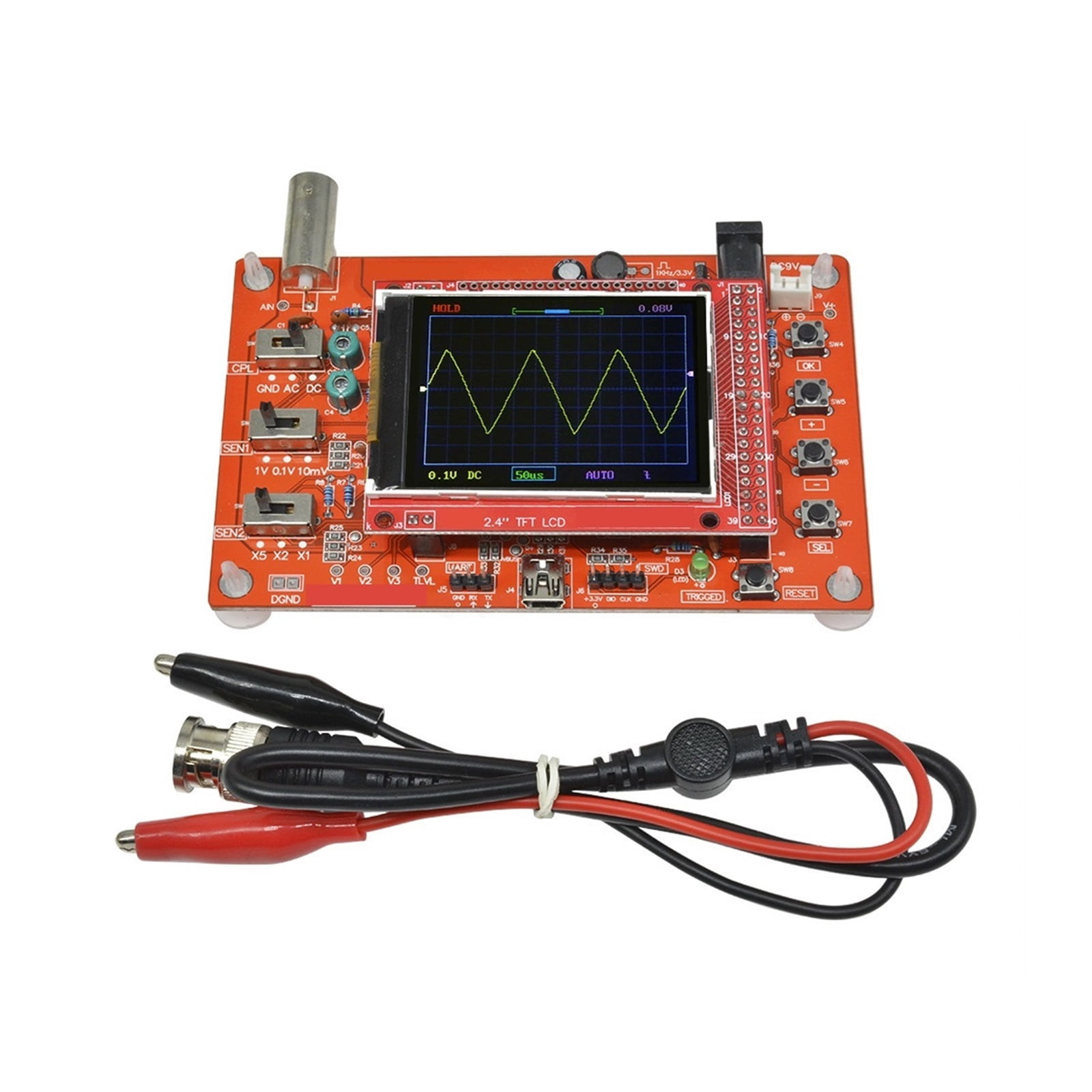

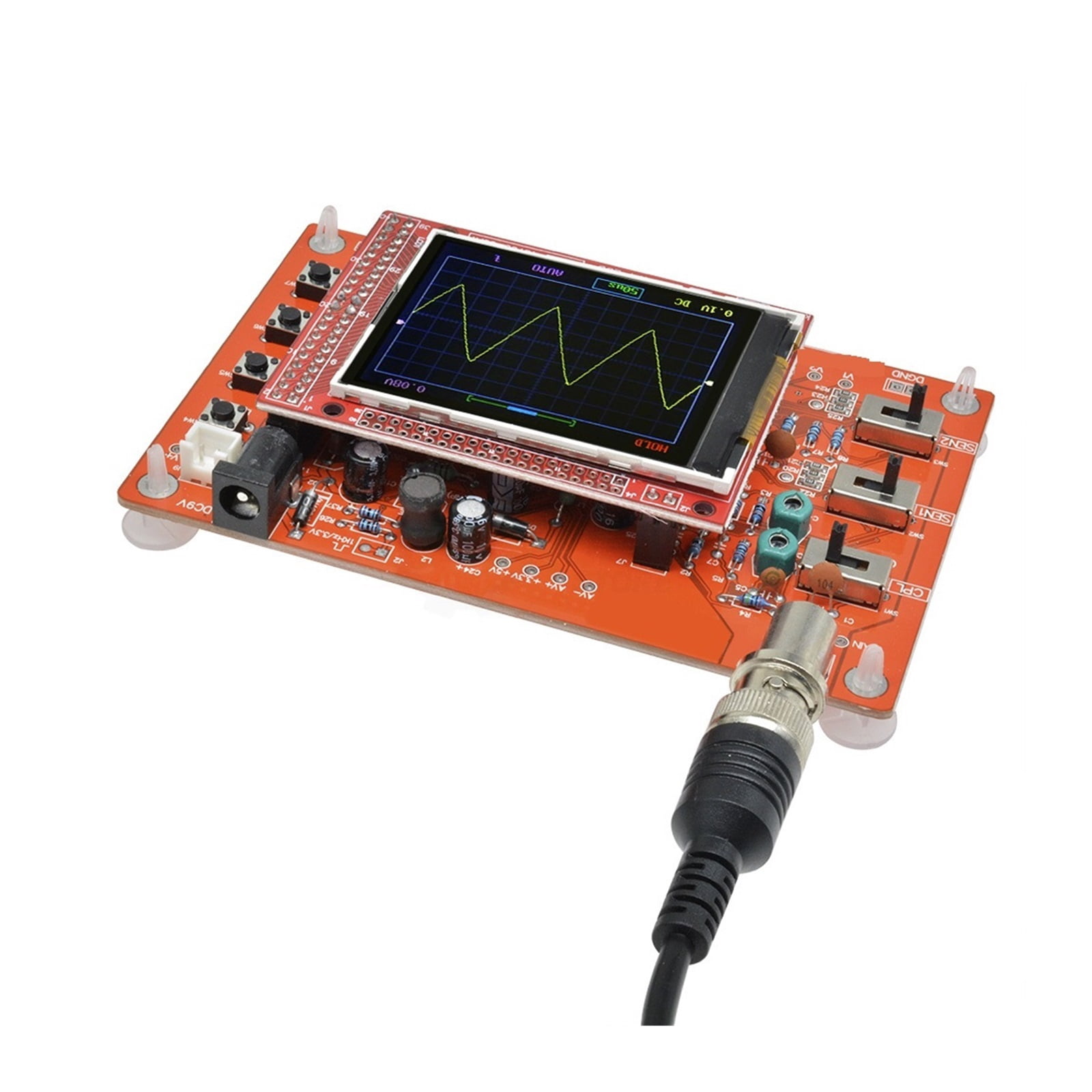

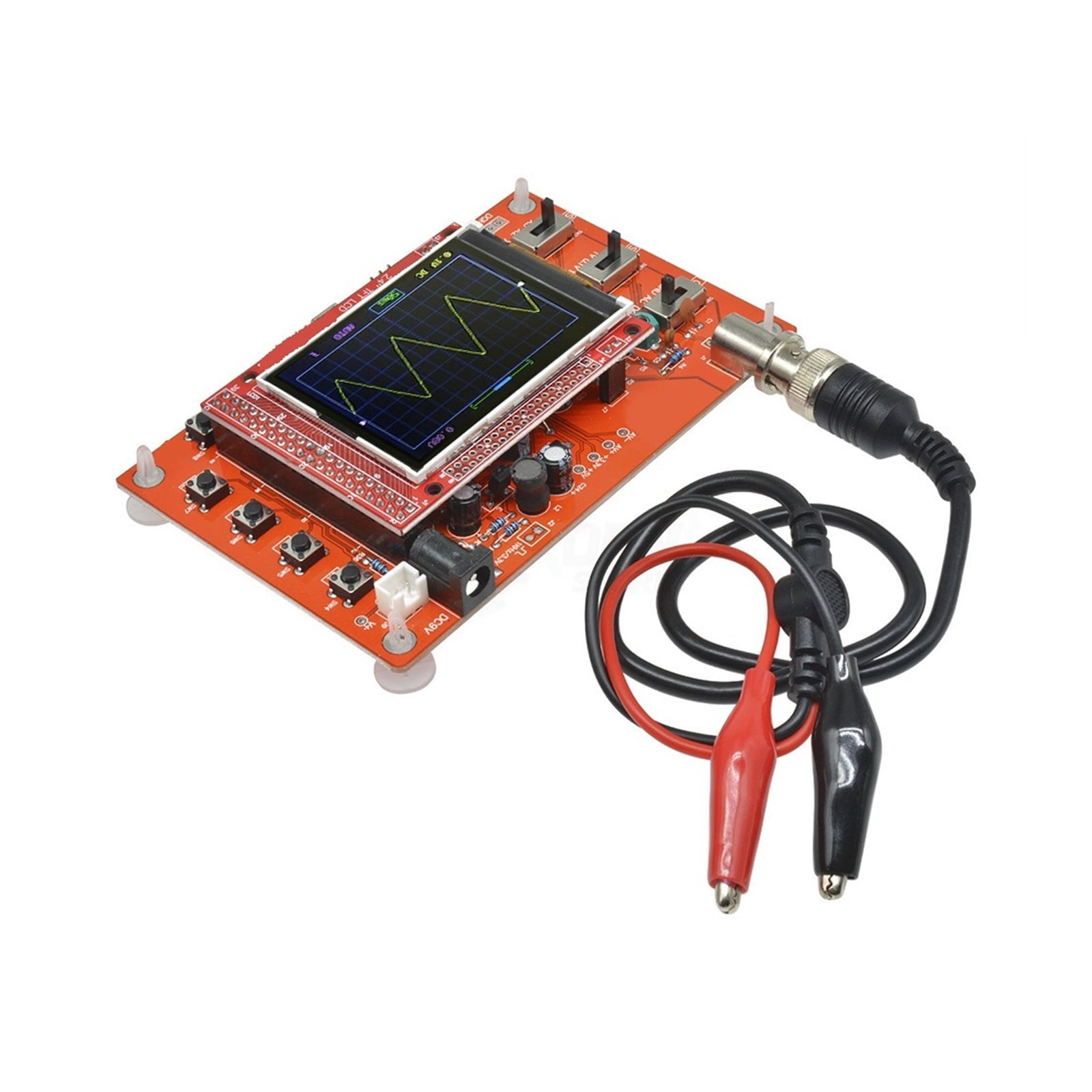

Fully Assembled Digital Oscilloscope 2.4" Display With Probe Test Clip For Electronic Measuring Instrument ,Professional Designed

<p>Training for electronic production, complete detailed descriptive information, including schematics, production guidance, instructions, troubleshooting methods, etc., making a high success rate.</p><p>Component species diversity for students to identify elements, inline elements welding, soldering SMD components training.</p><p>Students can get in at the same time making a practical tool for, video synchronization, low-frequency switching power supply, infrared receiver transmitter signal waveform and many other occasions, effectively observed and measured, increased interest in learning, improve learning outcomes.</p><p>Available source, the ability of a friend can be secondary development kit based on, for example, it can be changed to Millivoltmeter, data loggers, and so on.</p><p>Circuit is simple, reliable.</p><p>Maximum real-time sampling rate: 1Msps</p><p>Accuracy: 12Bit</p><p>Sampling buffer depth: 1024 bytes</p><p>Analog bandwidth: 0 - 200KHz</p><p>Vertical Sensitivity: 10mV / Div - 5V / Div ( 1-2-5 progressive manner )</p><p>Input impedance: 1M</p><p>The horizontal time base range: 10s / Div - 50s / Div ( 1-2-5 progressive manner )</p><p>With automatic, regular and one-shot mode, easy to capture the moment waveform</p><p></p><p>probes oscilloscope probe clips,oscilloscope lcd display,digital display oscilloscope,oscilloscope electronic</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

• Available rising or falling edge trigger
• Adjustable trigger level position, and with instructions
• Observable trigger waveform before ( negative delay )
• Can freeze at any time waveform display
• Comes 1Hz /3.3V square wave test signal source
